Parsing Northeastern's Graduation Audit

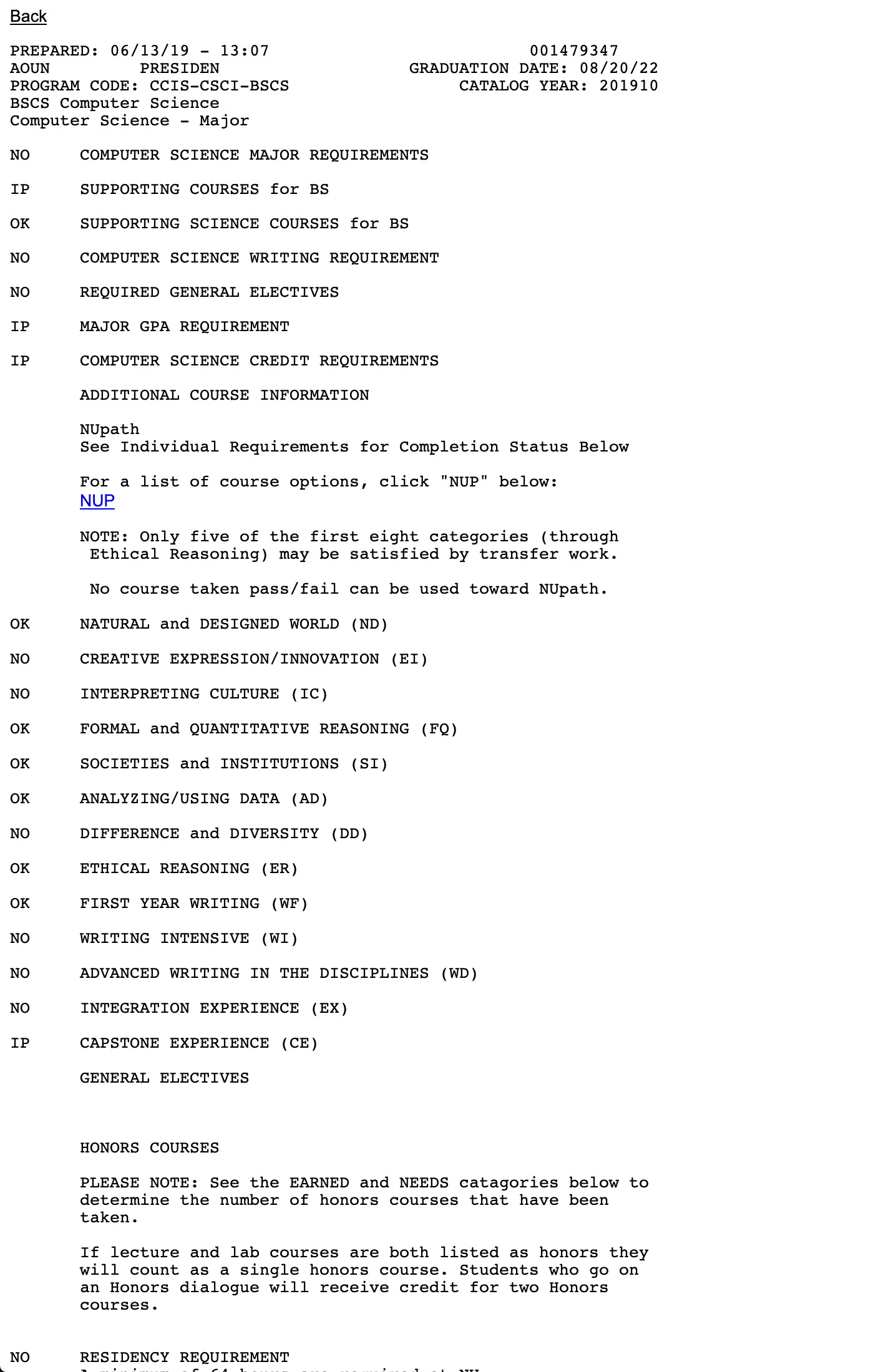

See the full example here
Northeastern's graduation audit software is unattractive, unintuitive, and annoying. I've had to use it on and off for over 4 years and each time I have to use it, I desperately wish that it'll be the last time.
With that introduction, it's no wonder that I've taken it upon myself to write a parser to extract the meaningful bits in the hopes of creating a much more palatable version to use.
Prior Art
I'd be remiss not to mention SandboxNEU which has which I shamelessly used as a reference for parsing this degree audit. They're doing a brilliant job converting the degree audit in to a full course planner with a visual drag-and-drop interface for filling all of your requirements.
As someone with 2 semesters left in my time at Northeastern, this is pretty pointless for my uses. What I'm attempting here is to have a generic JSON content extracted from the parser with the hopes of building a cleaner, more intuitive UI on top.
What's being used.
As an unapologetic rustacean, the natural choice for language to build this parser in was Rust. I've chosen to use pest as a parser library. There's something incredibly appealing about a pest file containing, for the most part, all of the logic for parsing a document.
Here's the complete .pest file:
// CONSTANTS
WHITESPACE = _{ " " | NEWLINE | "\t" }
DATE = { ASCII_DIGIT{2} ~ "/" ~ ASCII_DIGIT{2} ~ "/" ~ ASCII_DIGIT{2} }
// Graduation Date
GRAD_STRING = _{"GRADUATION DATE:"}
GRADUATION_DATE = { GRAD_STRING ~ DATE }
SKIP_TO_GRAD = _{ (!"GRADUATION" ~ ANY)* }
GRAD_PARSER = { SKIP_TO_GRAD ~ GRADUATION_DATE }
// Catalog Year
CATALOG_STRING = _{"CATALOG YEAR:"}
CATALOG_NUM = { ASCII_DIGIT{6} }
CATALOG_YEAR = { CATALOG_STRING ~ CATALOG_NUM }
SKIP_TO_CATALOG = _{ (!"CATALOG" ~ ANY)* }
CATALOG_PARSER = { SKIP_TO_CATALOG ~ CATALOG_YEAR }
// Major
MAJOR_STRING = _{" - Major"}
MAJOR = @{(!MAJOR_STRING ~ ANY)*} // Requires splitting on newline
// NuPath
NAME_VAL = { ASCII_ALPHA | " " | "/"}
NUPATH_NAME = @{ (!" (" ~ NAME_VAL)* }
NUPATH_ID = {ASCII_ALPHA_UPPER{2}}
STATUS = { "OK" | "IP" | "NO" }
NUPATH_PARSER = ${ STATUS ~ WHITESPACE{0,5} ~ NUPATH_NAME ~ " (" ~ NUPATH_ID ~ ")" }
// Course List
COURSE_LIST = _{ "Course List: "}
ID = @{ (ASCII_ALPHA_UPPER | " "){4}}
COURSE_NUMBER = @{ ASCII_DIGIT{4}}
COURSE = {ID? ~ COURSE_NUMBER }
SKIP_PARENS = _{ "(" ~ ANY{11} ~ ")" }
TO = { "TO" }
COURSE_LIST_PARSER = { COURSE_LIST ~ (COURSE ~ (SKIP_PARENS | TO)?)* }
// Courses
SEASON = { "FL" | "SP" | "S1" | "S2" | "SM" }
ABBREV_YEAR = { ASCII_DIGIT{2} }
YEAR = { SEASON ~ ABBREV_YEAR }
CREDITS = { ASCII_DIGIT ~ "." ~ ASCII_DIGIT{2} }
MAYBE_IP = { ANY{8} }
COURSE_NAME = { (!WHITESPACE{2} ~ ANY)*}
COURSE_PARSER = ${ " "* ~ YEAR ~ " " ~ COURSE ~ " "{0,5} ~ CREDITS ~ MAYBE_IP ~ COURSE_NAME }
// Requirements and Status information
FLOAT = { ASCII_DIGIT+ ~ "." ~ ASCII_DIGIT* }
EARNED_HOURS = { WHITESPACE* ~ "(" ~ FLOAT ~ "EARNED HOURS" ~ ")" }
NUM_COURSE = { ASCII_DIGIT+ }
COURSES_TAKEN = { NUM_COURSE ~ "COURSES TAKEN" }
ATTEMPTED_HOURS = { FLOAT ~ "ATTEMPTED HOURS" }
POINTS = { FLOAT ~ "POINTS" }
GPA = { FLOAT ~ "GPA" }
INFO = { EARNED_HOURS ~ COURSES_TAKEN ~ ATTEMPTED_HOURS ~ POINTS ~ GPA }
// Course, Course List, NuPath combined
COURSE_OPTION = { NUPATH_PARSER | COURSE_LIST_PARSER | COURSE_PARSER | INFO }
SKIP_TO_OPTIONS = _{ (!COURSE_OPTION ~ ANY)* }
main = { GRAD_PARSER ~ CATALOG_PARSER ~ MAJOR ~ (SKIP_TO_OPTIONS ~ COURSE_OPTION)*}
Kinda nice right?
How We Get There
If only that file was created via immaculate conception. Instead it was a lot of trial and error and looking at the GraduateNU codebase.

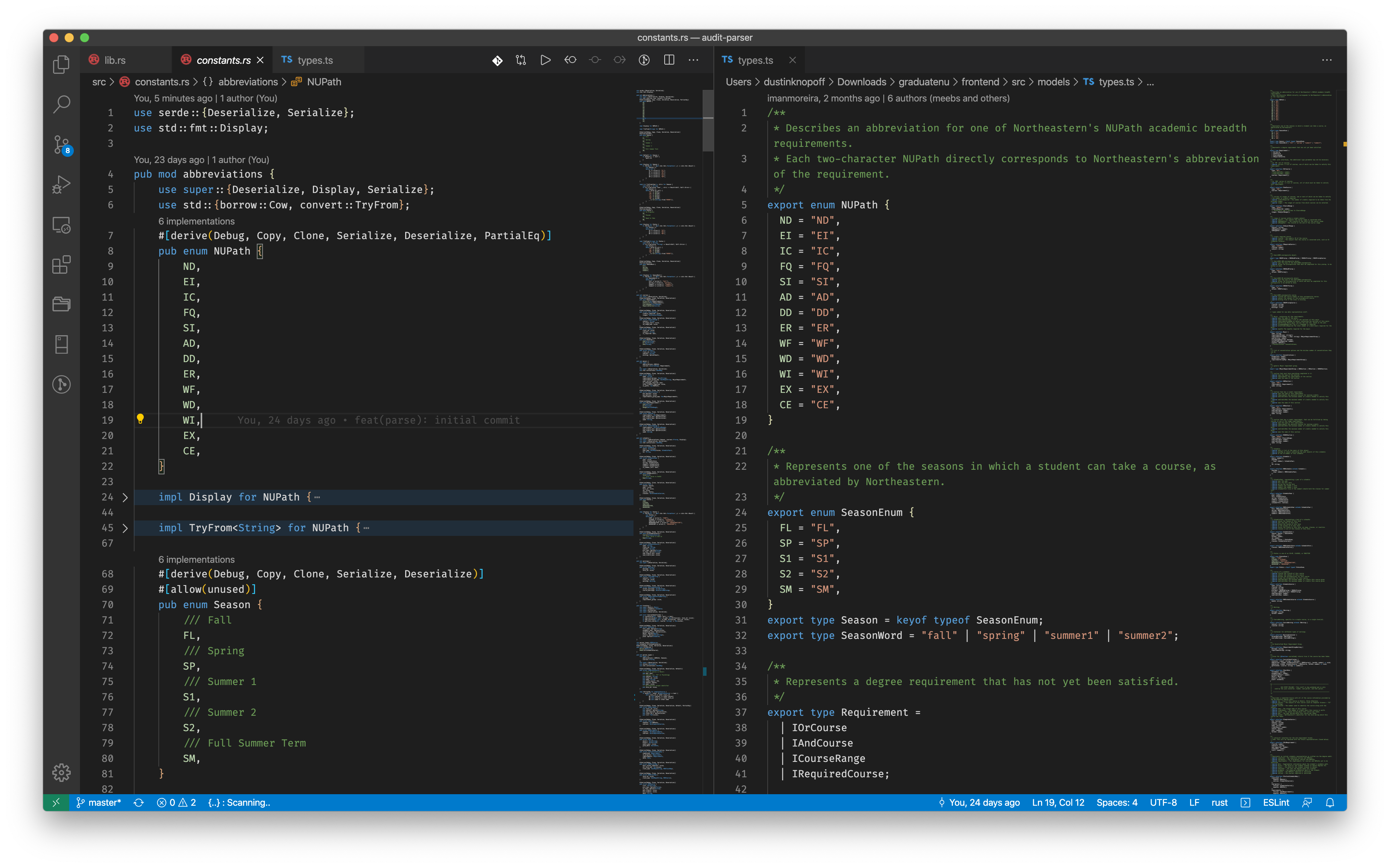

In fact that was the first thing I did. There's a file types.ts containing all of the typescript types used in their codebase. I copied it in to a constants.rs file and just converted them in to rust equivalents (class => struct, number => isize, string[] => Vec<String>, etc.).
Continuing to look through the GraduateNU codebase, there's a file html_parser.ts which is exactly what we intend to do:
HTML Degree Audit parser built for Northeastern University's degree audit. By Jacob Chvatal for Northeastern Sandbox.
Filters through a Northeastern degree audit, extracting its relevant information to an easy to work with JSON file tracking major, graduation date, classes and NUPaths taken and in progress as well as requirements to take.
Jackpot!
The relevant, high level part here is:
for (let i: number = 0; i < lines.length; i++) {
if (contains(lines[i], "Course List")) {
this.add_courses_to_take(lines, i, "");
} else if (contains(lines[i], "((FL|SP|S1|S2|SM)\\d\\d)")) {
this.add_course_taken(lines[i]);
} else if (contains(lines[i], "(>OK |>IP |>NO )")) {
this.get_nupaths(lines[i]);
} else if (contains(lines[i], "CATALOG YEAR")) {
this.add_year(lines[i]);
} else if (contains(lines[i], "GRADUATION DATE:")) {
this.add_grad_date(lines[i]);
} else if (contains(lines[i], "Major")) {
this.add_major(lines[i]);
}
}
}
Which leverages line counting, regex, and more. But I want the beautiful clean, pest file! So how does one go from being able to access arbitrary lines to a pest grammar, which amongst other things, never backtracks?
Converting to Pest
As a rule, start from the beginning. Looking at the sample audit and the code block above, the first significant piece of data is the GRADUATION DATE.
First we'll define what whitespace means:
WHITESPACE = _{ " " | NEWLINE | "\t" }
Pest 'rules' are always provided inside {}. The _ in front tells Pest to ignore anything that matches the pattern that follows. The | represents 'OR'.
This can be read as:
WHITESPACE is a silent rule matching " " or newlines or "\t"
Next, you'll notice that the graduation date is in the format 08/20/22, let's create a rule for that as well.
DATE = { ASCII_DIGIT{2} ~ "/" ~ ASCII_DIGIT{2} ~ "/" ~ ASCII_DIGIT{2} }
This introduces us to some more pest syntax. ASCII_DIGIT is a constant representing [0-9]. {2} following the ASCII_DIGIT says to match twice. The ~ symbol tells pest to match the following token next.
This can be read as:
DATE is a rule matching 2 digits, then a "/", then 2 digits, then a "/", then 2 digits
Soon, we're going to be composing these rules. An important part of pest rules is that everything with the {} "counts". So, when we want to get just the date from this block: GRADUATION DATE: 08/20/22 we couldn't have a rule:
GRADUATION_DATE = { "GRADUATION_DATE" ~ DATE }
As pest would see the string "GRADUATION_DATE" as a something worth tracking.
For this reason, we'll write it like this
GRAD_STRING = _{"GRADUATION DATE:"}
GRADUATION_DATE = { GRAD_STRING ~ DATE }
This can be read as:
GRAD_STRING is a rule silently matching "GRADUATION DATE:"
GRADUATION_DATE is a rule matching the rule
GRAD_STRINGand then matching the ruleDATE
But wait! There's a whole bunch (24 lines) of text that comes before the tiny bit to care about. How do we get rid of that?
SKIP_TO_GRAD = _{ (!"GRADUATION" ~ ANY)* }
This introduces us to a couple new pest syntaxes. We'll move outside in. The * is similar to the glob * in that it means match 0 or more times. It's preceded by a statement wrapped in () which means for the * to match on the entirety of the inner statement. The ! means "NOT" and ANY is a pest provided constant meaning anything.
This can be read as:
SKIP_TO_GRAD is a rule silently matching zero or more tokens which are not "GRADUATION"
This all comes together to create:
// CONSTANTS
WHITESPACE = _{ " " | NEWLINE | "\t" }
DATE = { ASCII_DIGIT{2} ~ "/" ~ ASCII_DIGIT{2} ~ "/" ~ ASCII_DIGIT{2} }
// Graduation Date
GRAD_STRING = _{"GRADUATION DATE:"}
GRADUATION_DATE = { GRAD_STRING ~ DATE }
SKIP_TO_GRAD = _{ (!"GRADUATION" ~ ANY)* }
GRAD_PARSER = { SKIP_TO_GRAD ~ GRADUATION_DATE }
And using pest.rs to it test out
This process was repeated until all of the sections GraduateNU extracted, were extracted in the pest rules.
The Rust
#[derive(Parser)]
#[grammar = "audit.pest"]
pub struct AuditParser;
This is a procedural macro provided by pest which magically converts the pest file in to a rust structure.
Brilliantly, it's designed to be accessed in a recursive match statement.
pub fn parse_audit(file: &'_ str) -> Result<AuditToJson<'_>, PestError<Rule>> {
let main = Self::parse(Rule::main, file)?.next().unwrap();
let mut out = AuditToJson::new();
fn parse_inner<'a>(mut out: &mut AuditToJson<'a>, rule: Pair<'a, Rule>) {
match rule.as_rule() {
Rule::GRAD_PARSER => {
let date = rule
.into_inner()
.next() // Move in to GRAD_PARSER Steps
.unwrap()
.into_inner()
.next() // Skip GRAD_STRING
.unwrap();
parse_inner(out, date);
}
Rule::CATALOG_PARSER => {
// Reach in to parser and get CATALOG_NUM
let year = rule.into_inner().next().unwrap();
parse_inner(out, year);
}
Rule::DATE => {
let date = NaiveDate::parse_from_str(rule.as_str(), "%D").unwrap();
out.grad_date = date;
}
// ...
Similar to the screenshot from pest.rs, in the Rule::GRAD_PARSER match branch, we reach in to a rule GRAD_PARSER > GRAD_STRING > GRAD_DATE
And the result is sweet, sweet JSON!
{
"majors": [
"Computer Science"
],
"minors": [],
"audit_year": 2020,
"grad_date": "2022-05-20",
"complete_nupaths": [
"ND",
"EI",
"IC",
"FQ",
"SI",
"AD",
],
...
